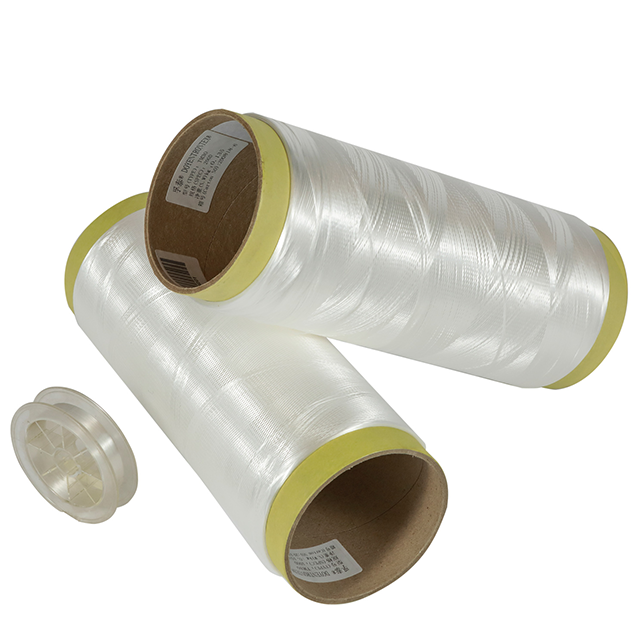

UHMWPE fiber for fishing lines


The fishing line made by TYZ® UHMWPE fiber/ HMPE fiber will be have an extremely high strength, high modulus, low density , high abrasion resistance, aging resistance, UV-resistance,water resistance and corrosion etc. TYZ® HMPE fiber also can be used for braiding a variety of type and diameter fishing line, or combined with other synthetic fiber materials for different kinds of fishing line.

Availability:
Quantity:
Product Description

The fishing line made by TYZ® UHMWPE fiber/ HMPE fiber will be have an extremely high strength, high modulus, low density , high abrasion resistance, aging resistance, UV-resistance,water resistance and corrosion etc.  TYZ® HMPE fiber also can be used for braiding a variety of type and diameter fishing line, or combined with other  synthetic fiber materials  for different kinds of fishing line.

Comparing with other synthetic fibers (including nylon, polyester, and aramid fiber), TYZ® ultra high molecular weight polyethylene fiber(UHMWPE fiber/HMPE fiber) has the highest strength -weight ratio, its strength  is 10 times higher than the same weight of steel. when the fishing line  made by TYZ® HMPE fiber fell into the water, it will be float on the water and easy to be found because its density is smaller than water.


Product Specification

Tenacity

cN/dtex

Level

(standard)

Denier

Detex

50

55

32-37

TM32,TM35

100

110

32-37

TM32,TM35

150

165

32-37

TM32,TM35

200

220

32-37

TM32,TM35

300

330

32-37

TM32,TM35

350

385

32-37

TM32,TM35

400

440

32-37

TM32,TM35



Performance:

  • High strength and high modulus

  • Soft

  • Low density

  • Abrasive resistance

  • Durability

  • fatigue durability

  • Corrosion resistance

  • UV resistance

  • Ageing resistance

  • Seawater corrosion resistance


UHMWPE Fiber

Advantage

  • High strength and high modulus, with tenacity up to 15 times that of a good quality steel

  • Low density: 0.97g/cm3, lighter than water

  • High impact resistance

  • Anti-aging and anti-UV capability

  • Corrosion and sea water resistance

  • Abrasion and fatigue resistance

  • Low dielectric constant, high electrical resistance and a dielectric loss factor

  • Temperature resistance: the strength and modulus increase at low temperature

UHMWPE-Fiber


Quality, Testing & Measurement Reports

  • Tenacity & denier tested for each bobbin by BJTYZ

  • Bar Code inside each bobbin for QC and tracking

  • BJTYZ provided measurement reports for each delivery

  • MSDS, FDA, OEKO-TEX

  • DNV certification: coming soon.


Quality,-Testing-&-Measurement-Reports

Industry Relations

  • Standards: a main drafter of national testing standard of HMPE fiber GB/T 19975-2005, and the first drafter of HMPE fiber industrial standard, and the first drafter of abrasion resistance of HMPE fiber.

  • TYZ is a qualified supplier of Chinese Navy and army.

  • First member from China in Eurocord and Rope Cordage Institute in USA


certificate


Production Capacity, Packing and Delivery:

  • 3000 tons per year

  • Packing

  • Delivery

  • Port of Loading: Qingdao, Beijing, Tianjin, Shanghai, etc.

  • Delivery: By Land, Air or Sea; Express including TNT, DHL, FedEx, etc.

Production-Capacity,-Packing-and-Delivery

PACKING

TYPICAL DIMENSION

Bobbin

Type 1: 3±0.3kg/bobbin (300D~1600D)

Type 2: 4±0.3kg/bobbin (1600D~6400D)

Carton

Type 1: 60x40x30cm - 6 bobbins; N.W.-about 18kgs/CTN

Type 2: 66x44x31cm - 6 bobbins; N.W.-about 24kgs/CTN

Pallet

(by Air)

Type 1: 1.20 x1.10x1.42cm- 20 cartons; N.W.- about 360kgs/PLT

Type 2: 1.34x1.10x1.46cm-20 cartons; N.W.- about 480kgs/PLT

Pallet

(by Sea)

Type 1: 1.20 x1.10x1.98cm- 30 cartons; N.W.- about 540kgs/PLT

Type 2: 1.34x1.10x2.04cm-30 cartons; N.W.- about 720kgs/PLT

20ft Container GP

(by Sea)

Type 1: 10 pallets; N.W.- about 5,400kg

Type 2: 8 pallets; N.W.- about 5,760kg

40ft Container GP

(by Sea)

Type 1: 21 pallets; N.W.- about 11,340kg

Type 2: 17 pallets; N.W.- about 12,240kg
