The bulletproof board independently developed by Beijing Tongyizhong according to the materials, can be divided into pure PE board, alumina ceramic board and silicon carbide ceramic board. According to the curvature, it can be divided into single panel, hyperbolic panel and multi-curved panel.
DOYENTRONTEX ® bulletproof protection board is produced by my company independent research and development of ultra-high molecular weight polyethylene (UHMWPE) fiber without weft cloth ready, is currently the national army and law enforcement personnel one of individual protective equipment is widely used.
DOYENTRONTEX ® PE bullet-proof flashboard meet GA141-2010 and 0101.06 NIJ standard corresponding requirement level, at the same time can also be customized according to customer requirements for products.
Because of the super high molecular weight polyethylene fiber specific strength, specific modulus, specific energy absorption than other bulletproof materials are high, the same level of protection materials, PE bulletproof board is the lightest. For multi - shot, oblique shot has excellent protection effect.
Excellent anti-chip performance, and can greatly reduce sag.
Easy to use with other materials, to cope with more complex environment

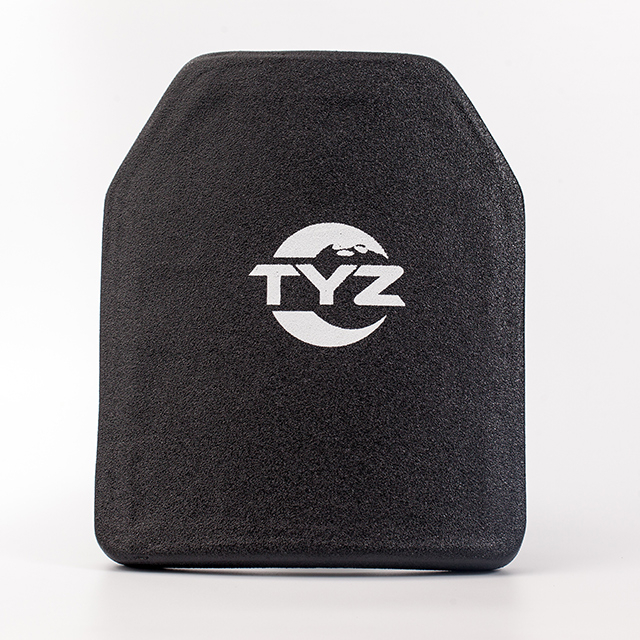

PE Insert Plate
Style | Size（mm） | Protection Level | Areal density（kg/㎡） | Weight（kg） |
ZC131 | 250×300 | NIJ IIIA | 6±0.02 | 0.45±0.05 |
ZC133 | 250×300 | NIJ III | 16±0.02 | 1.25±0.05 |
ZC132 | 250×300 | AK47 | 28±0.02 | 1.30±0.05 |
ZC143 | 250×300 | SS109 | 23±0.02 | 1.72±0.05 |
Composite Plate
Style | Material | Size(mm) | Protection Level | Weight（kg） |
ZF133A | Al2O3+PE | 250×300 | NIJ III+ | 2.25±0.05 |
ZF133S | SiC+PE | 250×300 | NIJ III+ | 1.85±0.05 |
Performance：
Light
acid and alkali resistance
Wet resistance
UV resistance
Ageing resistance
High ballistic performance
